WENTAO T-25 Ultra-Compact Multi-Purpose Touch Probe for CNC Lathes & Machining Centers

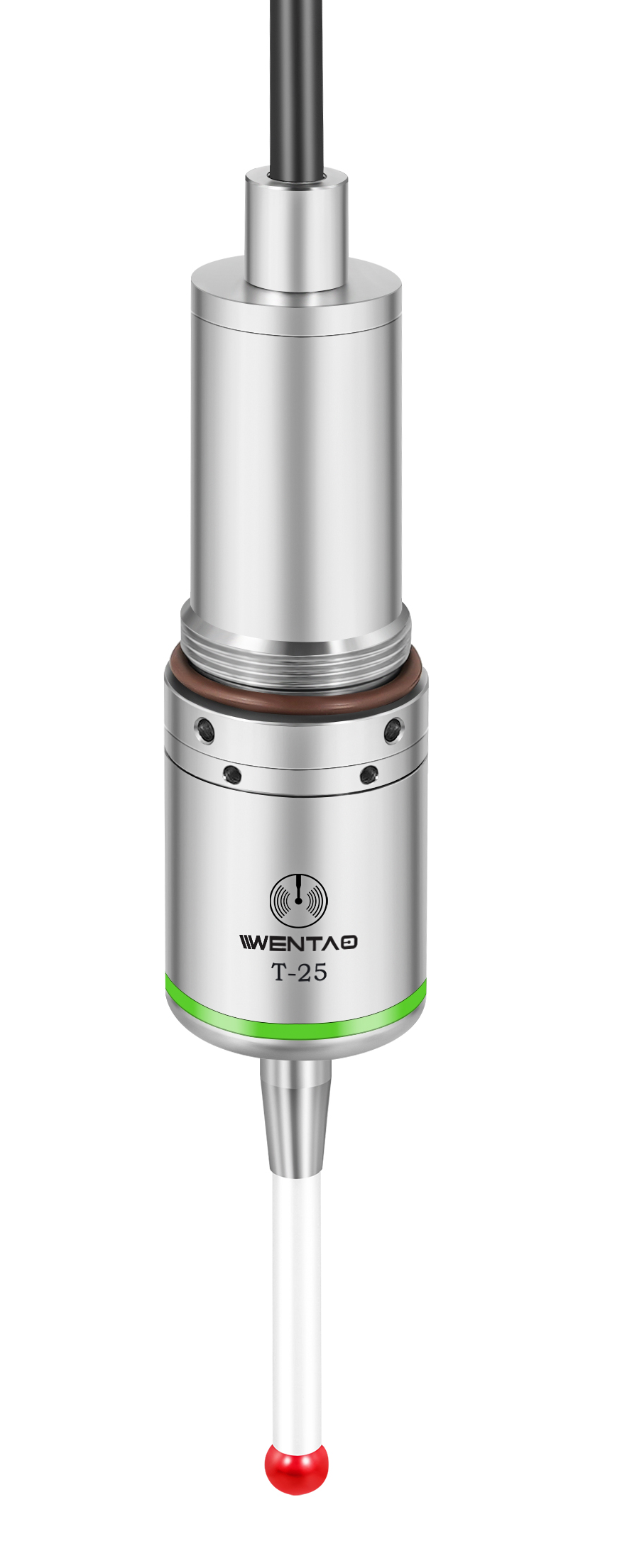

### WENTAO T-25 Ultra-Compact Multi-Purpose Touch Probe

The WENTAO T-25 is a highly compact and versatile touch probe designed for CNC lathes, machining centers, and CNC grinding machines[cite: 9]. Weighing only 65 grams, its small footprint allows seamless, flexible mounting onto lathe tool turrets, machining center spindles, or machine tables[cite: 9]. It performs automated workpiece inspection, edge-finding, tool setting, and tool breakage detection[cite: 9]. Flexible in configuration, it can operate as a direct hardwired system or combine with optical/radio transceiver modules (such as T-40/T-40A) for effortless machine retrofitting[cite: 9].

### Key Features & Advantages

* Ultra-Compact & Flexible Mounting: Features M22 thread mounting with a 25mm diameter body, allowing easy installation on tight-space turrets or spindles[cite: 9].

* High Measurement Repeatability: Delivers outstanding $1.00\mu m$ $2\sigma$ unidirectional repeatability (tested with a 35mm stylus at 480mm/min)[cite: 9].

* Ultra-Low System Latency: System latency repeatability is less than $2\,\mu\text{s}$ across all measuring directions, ensuring reliable data logging[cite: 9].

* Adjustable Stylus Trigger Force: Factory-configured with adjustable trigger sensitivity (XY Low: 0.50 N / XY High: 0.90 N / Z-Axis: 5.85 N) to suit various workpiece materials[cite: 9].

* Multi-Transmission Adaptability: Supports hardwired connections for direct controller response, as well as optical and radio transmission configurations[cite: 9].

* IPX8 Extreme Sealing: Certified with IPX8 waterproof rating to protect inner mechanisms from continuous coolant immersion and abrasive metal chips[cite: 9].

### Technical Specifications

* Model: T-25[cite: 9]

* Primary Applications: CNC Lathes, Machining Centers, CNC Grinders[cite: 9]

* Dimensions: 75.10 mm Total Body Length / 25 mm Max Diameter[cite: 9]

* Unit Weight: 65 g[cite: 9]

* Mounting Thread: M22 * 1[cite: 9]

* Transmission Type: Hardwired Cable / Optical & Radio Transceiver Compatible[cite: 9]

* Sensing Directions: 3D Omnidirectional ($\pm X, Y, +Z$)[cite: 9]

* Unidirectional Repeatability: $1.00\,\mu\text{m}$ $2\sigma$[cite: 9]

* Stylus Over-travel Limits: 14.87 mm $\pm12.5^\circ$ (XY Plane), 5.0 mm (+Z Axis)[cite: 9]

* Stylus Trigger Force:

* XY Low Force: 0.50 N (51 gf)[cite: 9]

* XY High Force: 0.90 N (92 gf)[cite: 9]

* +Z Axis Force: 5.85 N (597 gf)[cite: 9]

* Recommended Stylus Length: 50 mm to 100 mm (M4 thread)[cite: 9]

* Operating Voltage: DC 24V (NO PhotoMOS Relay Output)[cite: 9]

* Enclosure Protection: IPX8 Waterproof Rating[cite: 9]

* Operating Temperature: $+5^\circ\text{C}$ to $+55^\circ\text{C}$[cite: 9]
