WENTAO RT-40 2.4GHz Radio Touch Trigger Probe System for Large CNC Machining Centers

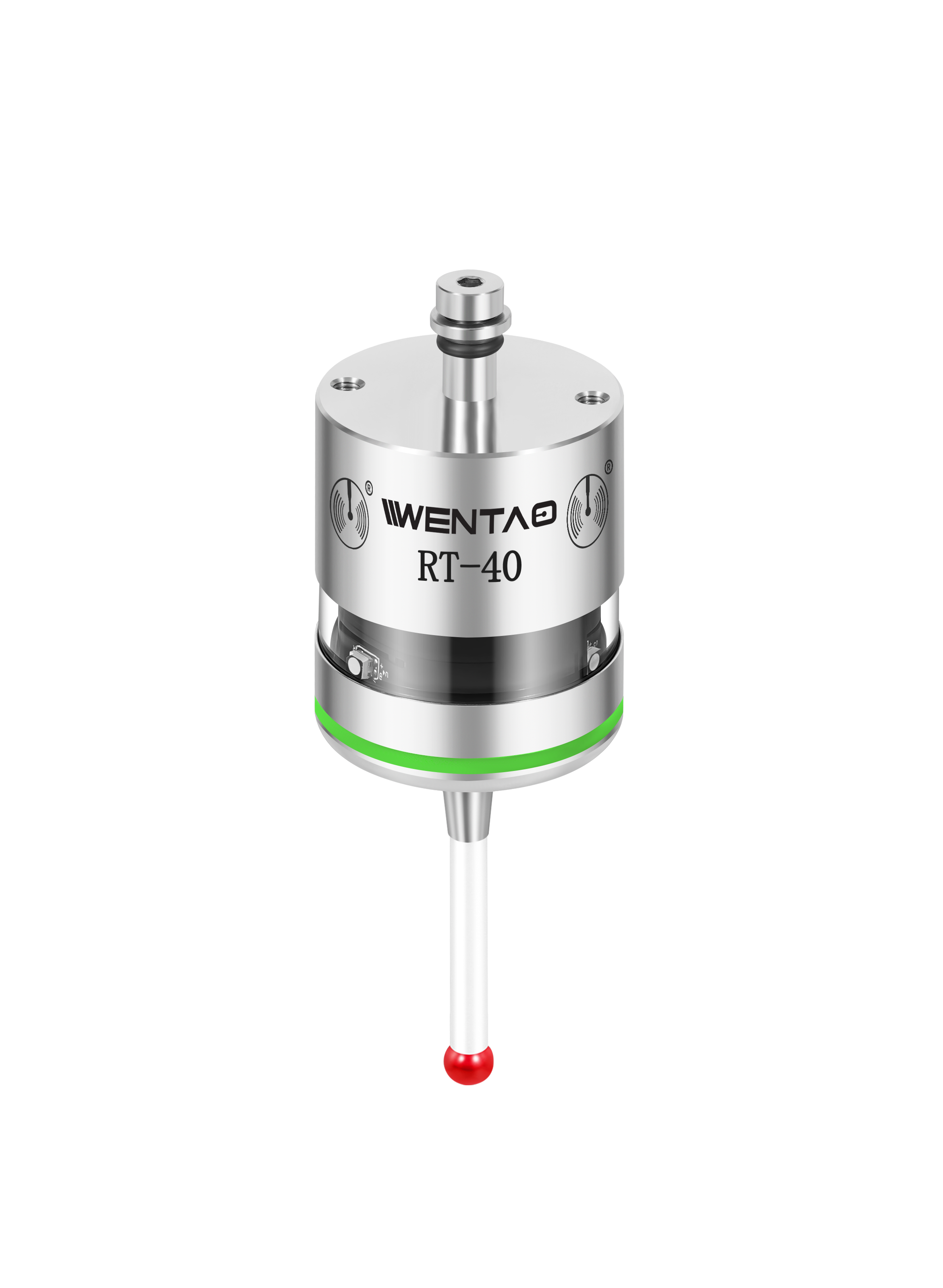

### WENTAO RT-40 2.4GHz Radio Transmission Touch Probe System

The product comes with a set of measuring probes, tool holders, and extension bars.

The WENTAO RT-40 is a next-generation 3D radio workpiece measurement system designed specifically for large CNC machining centers, gantry mills, and complex multi-tasking machine tools. Built for environments where optical line-of-sight signal transmission is frequently obstructed, the RT-40 utilizes advanced 2.4 GHz Frequency Hopping Spread Spectrum (FHSS) radio technology. Operating alongside the RRI integrated machine interface/receiver, it delivers reliable, high-precision automated workpiece alignment, edge-finding, and dimensional inspection across long working distances.

### Key Features & Advantages

* Advanced 2.4 GHz FHSS Technology: Operates on the global 2400 MHz to 2525 MHz frequency band with dynamic frequency hopping, effectively preventing radio interference and enabling multiple systems to operate simultaneously in the same workshop.

* Non-Line-Of-Sight Transmission: Radio signals penetrate small gaps, machine enclosures, and structural blockages over an extended operating range of up to 10 meters.

* High Repeatability & Sub-Micron Resetting: Features a precision 3-point hybrid trigger mechanism delivering a unidirectional repeatability of 1.00 µm 2σ and a self-resetting accuracy of < 1 µm.

* Multi-Probe Capability: Up to 4 radio probes or tool setters can be paired with a single RRI interface, allowing versatile combinations on a single machine tool.

* Flexible Activation & Sleep Modes: Supports customizable Radio On/Off M-codes, Timeout Delay, and intelligent Sleep Modes (waking up every 5s/30s) to significantly preserve battery power.

* IPX8 Extreme Sealing Defense: Engineered with a heavy-duty IPX8 waterproof structure and IK01 glass window to withstand continuous coolant sprays, oils, and flying metal chips.

* Dual Power Compatibility: Operates on standard 2x AA 1.5V alkaline batteries or high-capacity 2x AA 3.6V Lithium Thionyl Chloride (LTC) batteries, yielding up to 1,710 hours of continuous use (LTC).

### Technical Specifications

* Probe Model: RT-40

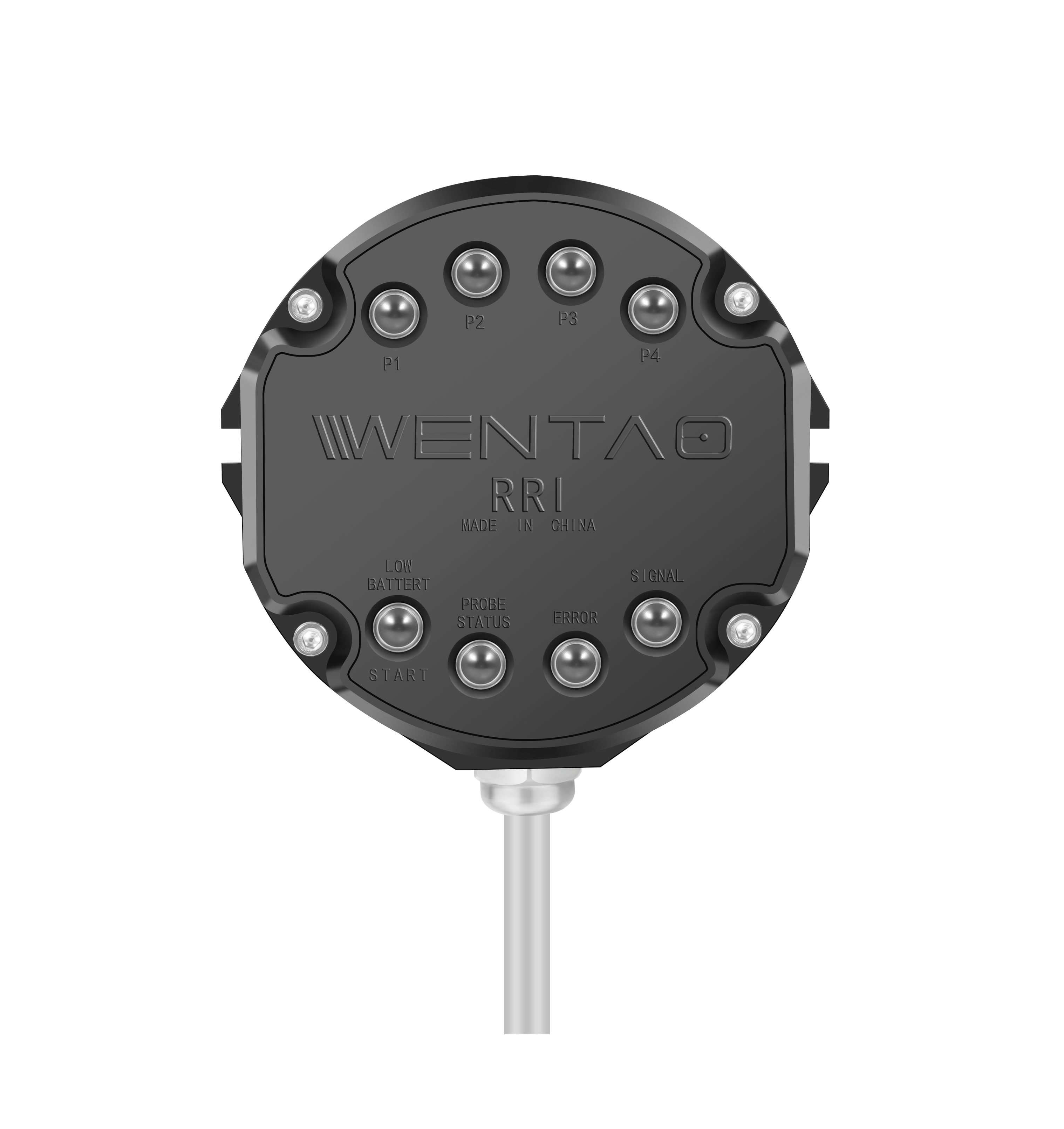

* Matched Receiver/Interface: RRI Receiver (12V–30V DC)

* Primary Applications: Large Machining Centers, Gantry Mills, Multi-Tasking CNCs

* Dimensions: 50 mm Length / 40 mm Diameter

* Weight (without shank): 235 g (without batteries) / 254 g (with batteries)

* Radio Frequency: 2400 MHz to 2525 MHz (FHSS)

* Operating Transmission Distance: Up to 10 meters

* Sensing Directions: 3D Omnidirectional ($\pm X, Y, +Z$)

* Unidirectional Repeatability: 1.00 µm 2σ (tested with 50mm stylus at 480mm/min)

* Stylus Over-travel Limits: $\pm 12.5^\circ$ (XY Plane), 6 mm (+Z Axis)

* Stylus Trigger Force: 0.50 N (XY Low) / 0.90 N (XY High) / 5.85 N (+Z)

* Enclosure Rating: IPX8 Waterproof Standard

* Battery Types: 2 x AA 1.5V Alkaline or 2 x AA 3.6V LTC Batteries

* Operating Temperature: $+5^\circ\text{C}$ to $+55^\circ\text{C}$
