WENTAO T-60 High-Precision Infrared Workpiece Probe for Large CNC Machining Centers

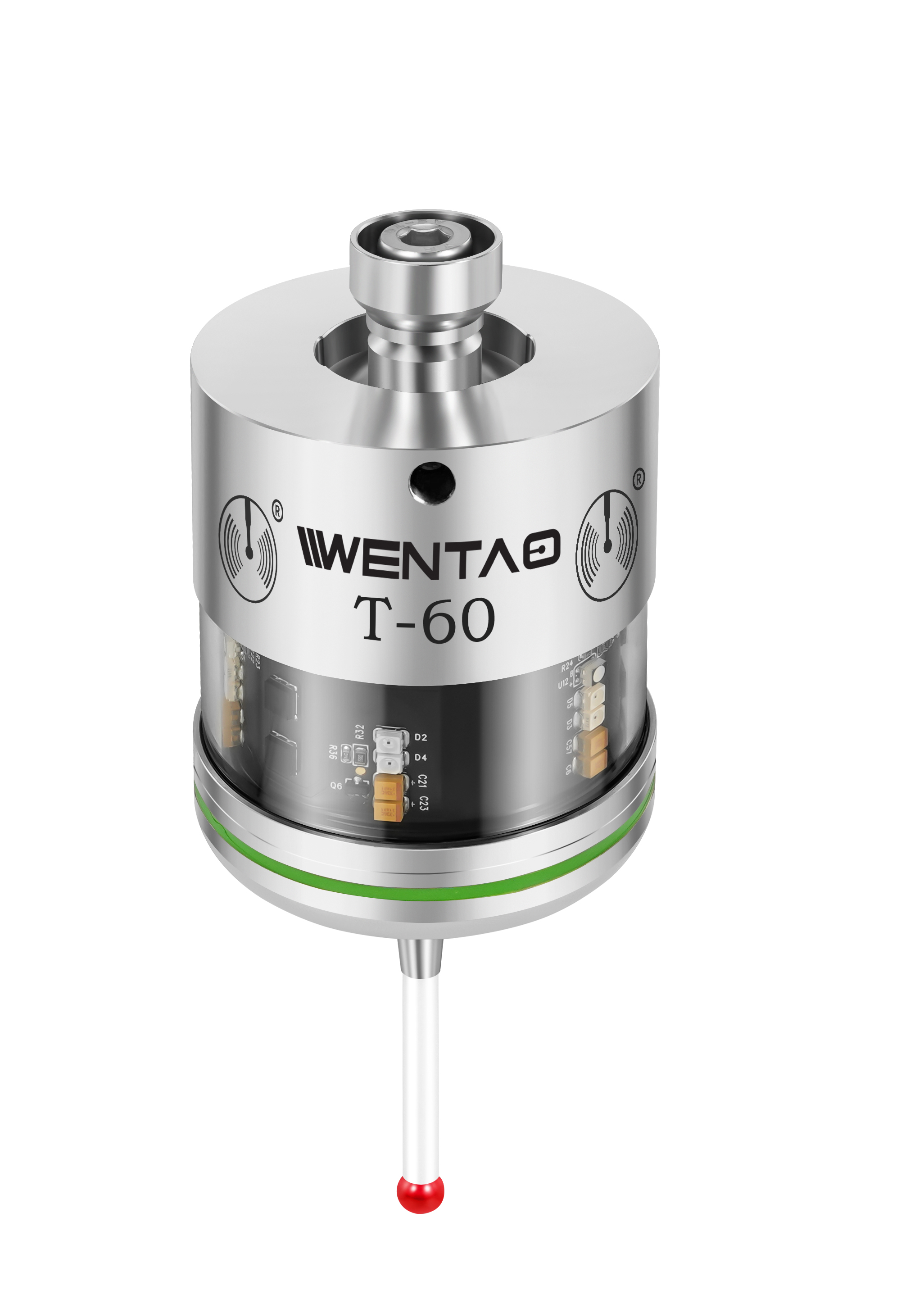

### WENTAO T-60 High-Precision Infrared Workpiece Probe

The product comes with a set of measuring probes, tool holders, and extension bars.

The WENTAO T-60 is a heavy-duty optical workpiece probe specifically designed for medium-to-large machining centers and mill-turn multitasking machines[cite: 7]. Built around a highly reliable 3-point mechanical-electronic trigger system, it automates workpiece inspection, edge-finding, and alignment[cite: 7]. Operating in tandem with the T-50A optical receiver over long-range modulated infrared signals, it eliminates human setup errors and ensures precision quality control in demanding CNC environments[cite: 7].

### Key Features & Advantages

* 3-Point Precision Mechanism: Features an advanced internal trigger mechanism that automatically resets with an accuracy of < 1 µm, ensuring continuous and consistent measuring operations[cite: 7].

* Long-Range 360° Optical Signal: Delivers reliable 360° optical transmission with an extended operating range of up to 5–8 meters, tailored for large machine envelopes[cite: 7].

* Flexible Spin & Optical Activation: Offers user-configurable activation options, including Optical On/Off, Timeout Delay, and Spin-On/Spin-Off (spin at 500 rev/min for 1 second)[cite: 7].

* Enhanced Trigger Filter: Features an optional 10ms enhanced filter that prevents accidental false triggers caused by heavy machine vibration or rapid axis acceleration[cite: 7].

* Robust IPX8 Enclosure Protection: Certified with an IPX8 waterproof rating and an IK01 impact-resistant glass window, fully protecting internal optics against persistent coolants and oil spray[cite: 7].

* Power Optimization: Supports adjustable optical power output modes to maximize the operational lifespan of its 2 x 1/2 AA 3.6V Lithium Thionyl Chloride (LTC) batteries[cite: 7].

### Technical Specifications

* Probe Model: T-60[cite: 7]

* Matched Receiver Model: T-50A Receiver[cite: 7]

* Primary Applications: Large/Medium Machining Centers & Mill-Turn Machines[cite: 7]

* Dimensions: 76 mm Length / 63 mm Diameter[cite: 7]

* Weight (without shank): 836 g (without batteries) / 885 g (with batteries)[cite: 7]

* Transmission Type: 360° Infrared Optical Transmission (Modulation Mode)[cite: 7]

* Operating Transmission Range: 5–8 meters[cite: 7]

* Trigger Directions: 3D Omnidirectional (X, Y, +Z)[cite: 7]

* Unidirectional Repeatability: 1.00 µm 2σ[cite: 7]

* Stylus Over-travel Limits: ±18.5° (XY Plane), 11 mm (+Z Axis)[cite: 7]

* Stylus Triggering Force (Adjustable):

* XY Low Force: 0.50 N to 2.0 N[cite: 7]

* XY High Force: 0.90 N to 3.5 N[cite: 7]

* Z Axis Force: 3.50 N to 14 N[cite: 7]

* Enclosure Rating: IPX8 Waterproof Standard[cite: 7]

* Battery Requirements: 2 x 1/2 AA 3.6V LTC Batteries[cite: 7]

* Operating Temperature: +5°C to +55°C[cite: 7]
