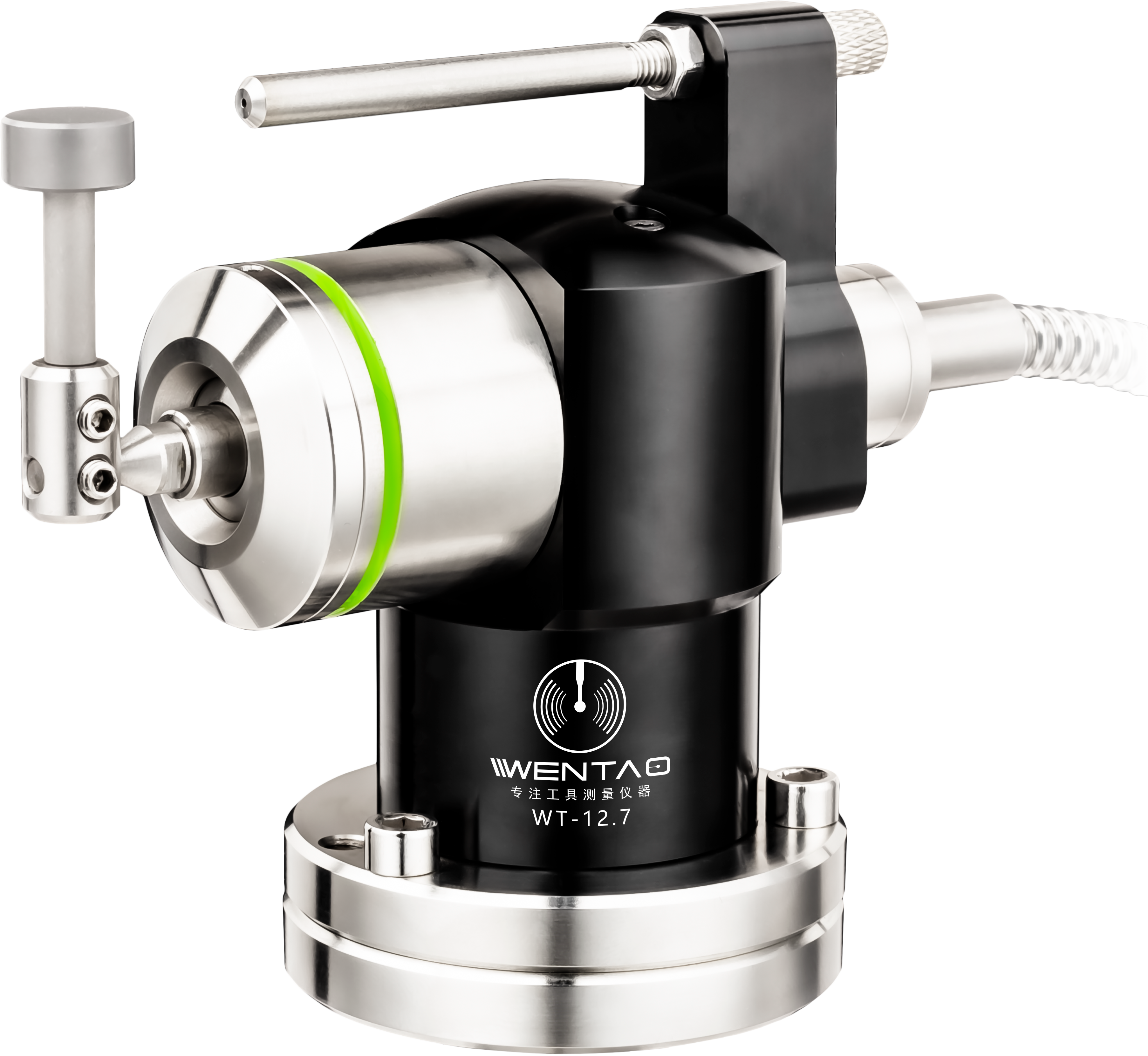

WENTAO WT-12.7 5-Direction High-Precision Tool Setter for CNC Machining Centers

### WENTAO WT-12.7 5-Direction High-Precision Tool Setter

The WENTAO WT-12.7 is a premium 5-direction high-precision tool setter specially developed for CNC machining centers and tapping/drilling machines. By providing versatile multi-axis trigger detection ($\pm X, Y, +Z$), it seamlessly executes automated tool length measurement, tool radius compensation, and rapid tool breakage detection. Equipped with an imported ultra-hard alloy disc contact face and an integrated auto air blow mechanism, it eliminates manual operational errors and drastically improves setup efficiency.

### Key Features & Advantages

* 5-Direction Trigger Sensing: Supports 3D omnidirectional sensing ($\pm X, Y, +Z$ axes), allowing precise tool radius compensation for rotating tools alongside Z-axis length calibration.

* 0.001 mm High Precision: Delivers exceptional single-item repetition accuracy down to 0.001 mm (1 µm), providing ultra-precise baseline data for tight-tolerance CNC machining.

* Integrated Auto Air Blow System: Features a built-in air nozzle that automatically clears cutting debris, chips, and coolant droplets from the measuring surface before contact, securing maximum measurement accuracy.

* Imported Ultra-Hard Alloy Contact Disc: Equipped with a durable Ø12.7 mm ultra-hard carbide disc contact surface designed for over 3 million trigger cycles with minimum wear.

* IPX8 Fully Sealed Architecture: Constructed with a waterproof, oil-proof, fully sealed core to reliably operate amidst heavy coolant sprays and hot metallic chips.

* Universal Controller Compatibility: Hardwired signal design works smoothly with all major CNC controllers worldwide, including FANUC, Siemens, Mitsubishi, Syntec, GSK, LNC, and Fagor.

### Technical Specifications

* Model: WT-12.7

* Primary Applications: CNC Machining Centers, Drilling & Tapping Machines

* Trigger Directions: 5 Directions ($\pm X, Y, +Z$)

* Measurement Accuracy: 0.001 mm (1 µm)

* Trigger Service Life: > 3,000,000 times

* Contact Surface Disc: Ø12.7 mm Imported Ultra-Hard Carbide Surface

* Sealing Protection Rating: IPX8 / IP67 Heavy-Duty Standard

* Air Supply Feature: Integrated Auto-Blow Nozzle (Air Clean System)

* Cable Specification: 5-Meter 4-Core Armored Cable

* Output Configuration: NO (Normally Open) / PhotoMOS Relay Output

* Operating Voltage: DC 24V ±10% (Max 20mA)

* Unit Weight: 1055 g (including disc stylus)

* Operating Temperature: +5°C to +60°C
