WENTAO iS-60 High-Precision Grating Tool Setter for CNC Machines

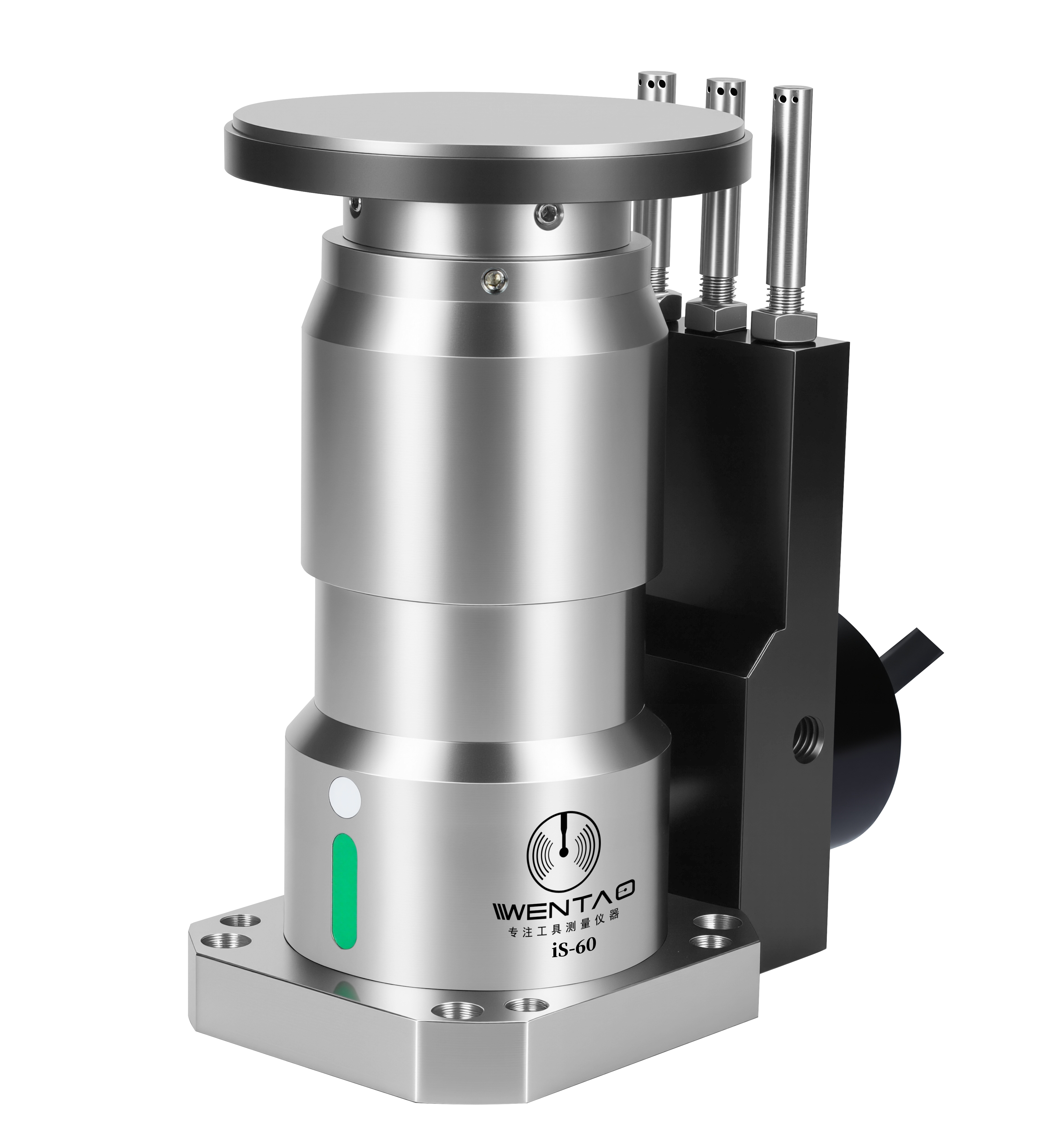

WENTAO iS-60 High-Precision Grating Tool Setter

The WENTAO iS-60 is a heavy-duty, high-precision grating tool setter designed for CNC machining centers. By introducing a revolutionary Non-Contact Optical Grating Measurement System, it eliminates the mechanical wear and signal bounce typical of traditional tool setters. It automatically measures tool length parameters and sends real-time data directly to the CNC system, securing your first line of defense in precision machining.

### Key Features & Advantages

* Patented Dual-Optical Grating: Utilizes advanced dual-path differential signal technology with a ultra-fast 20µs response time. It automatically filters out environmental and electrical noise to deliver clean, jitter-free signals.

* Ultra-High & Stable Repeatability: Achieves an exceptional repetition accuracy of 0.5 µm (tested at 50mm/min), ensuring flawless tool compensation and minimizing scrap rates.

* Zero Physical Wear for Longer Service Life: Replaces mechanical contact switches with optical sensing, offering over 10 million trigger cycles with zero physical contact decay. The ultra-hard, precision-ground tungsten steel surface maintains its initial precision over long-term use.

* Heavy-Duty Industrial Construction: Built with an anti-corrosion stainless steel body and certified with IP68 top-tier industrial protection, completely immune to alkaline coolants, flying metallic fragments, and heavy oil stagnation.

* Heavy Armored Shielded Cabling: Outfitted with a 5-Meter heavy-duty PUR cable paired with a 2.5-Meter armored protection tube (R25 minimum bending radius). Outstanding resistance to oil, cold, grease, and tearing.

* Smart Diagnostic LED: Includes an integrated over-travel safety alarm mechanism along with an active status LED indicator that illuminates instantly upon tool triggers.

### Technical Specifications

* Model: iS-60

* Measurement Principle: Non-Contact Grating System

* Repeatability: 0.5 µm (at 50mm/min operation speed)

* Response Time: 20 µs

* Trigger Direction: +Z Axis

* Output Signal: NO (Normally Open), Clean Voltage Signal

* Service Life: > 10,000,000 times

* Protection Class: IP68 Industrial Standard

* Contact Surface Material: Ultra-Hard Alloy

* Rated Values: DC 24V ±10%, Max 20mA (Operating Current: 10mA)

* Cable Specification: 5M PUR Shielded Cable with Armored Tube

* Status Indicator: Active Trigger LED Light
