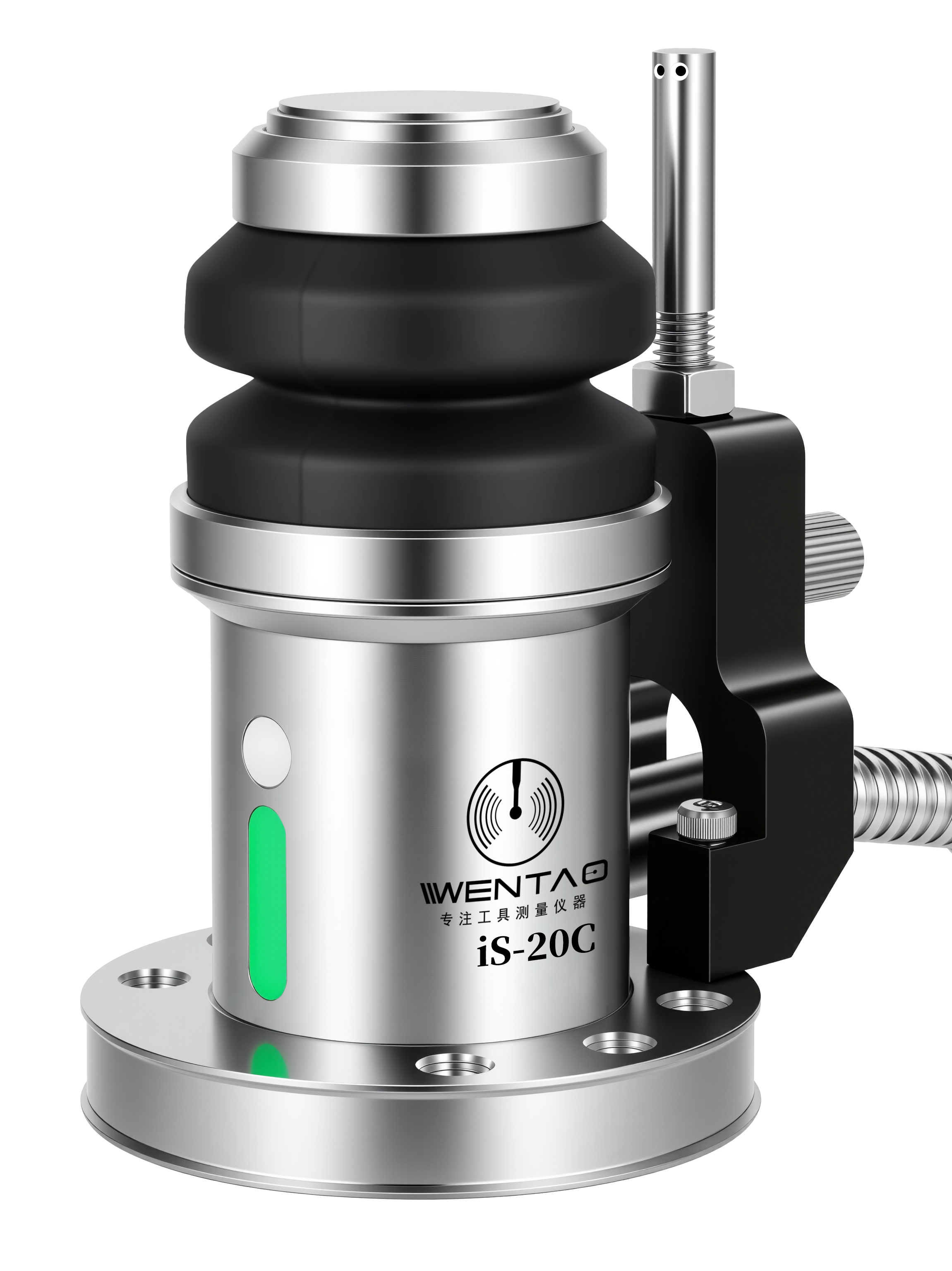

WENTAO iS-20C High-Precision Grating Tool Setter

WENTAO iS-20C High-Precision Grating Tool Setter

The WENTAO iS-20C is a premium auxiliary measurement device engineered for diverse CNC machining environments. Designed to measure tool length parameters with extreme precision, it automatically transmits measurement data directly to the CNC system for instant tool compensation parameter setup. By replacing traditional manual tool setting methods, it significantly increases workflow efficiency, eliminates human operational errors, and guarantees the geometric processing precision of your finished workpieces.

Key Features & Advantages

• Patented Optical Grating Sensing System: Utilizes advanced dual-path grating logic paired with an incredibly fast 20µs response time. It inherently cancels out ambient noise and machine tremors, yielding clean, jitter-free electrical signal outputs.

• Exceptional Repetition Accuracy: Offers an ultra-precise repeatability of 0.5 µm (tested under controlled operating speeds of 50mm/min), safeguarding your production line against sudden deviation errors.

• Contact-Free Internal System for Zero Wear: By adopting optical induction rather than mechanical contact switches, the device boasts an extensive service life of over 10 million trigger cycles without physical decay.

• Ultra-Hard Alloy & Enhanced Bellows Defense: Features a heavy-duty 20mm diameter ultra-hard alloy contact face. The upper housing integrates a specialized protective rubber bellow, ensuring ultimate resilience against aggressive debris intrusion.

• IP68 Top-Tier Industrial Shielding: Engineered to operate seamlessly in the harshest industrial settings. It is completely sealed against alkaline coolants, flying metallic fragments, and heavy oil stagnation.

• Heavy Armored Shielded Cabling: Comes standard with a 5-Meter heavy-duty PUR cable encased within a 2.5-Meter minimum bending radius (R25) armored tube. Highly resistant to grease, freezing temperatures, tearing, and high-frequency friction.

• Smart Diagnostics Indicator: Features an integrated hardware over-travel safety alarm function alongside a built-in quick status LED (Normally dark, illuminates instantly upon active tool triggers).

Technical Specifications

• Model: iS-20C

• Contact Surface Diameter: 20 mm

• Contact Surface Material: Ultra-Hard Alloy

• Trigger Direction: +Z Axis

• Output Configuration: NO (Normally Open)

• Stroke / Travel: 8 mm

• Repeatability: 0.5 µm (at 50mm/min operation speed)

• Service Life: > 10,000,000 times

• Protection Class: IP68 Industrial Standard

• Contact Force: 2.5 N (Vertically Installed State)

• Contact Rated Values: DC24V ±10%, Max 20mA (Standard Operating Current: 10mA)

• Cable Specification: 5M High-Durability PUR Cable

• Status LED: Glows immediately upon active contact trigger
