High-Precision Grating Tool Setter

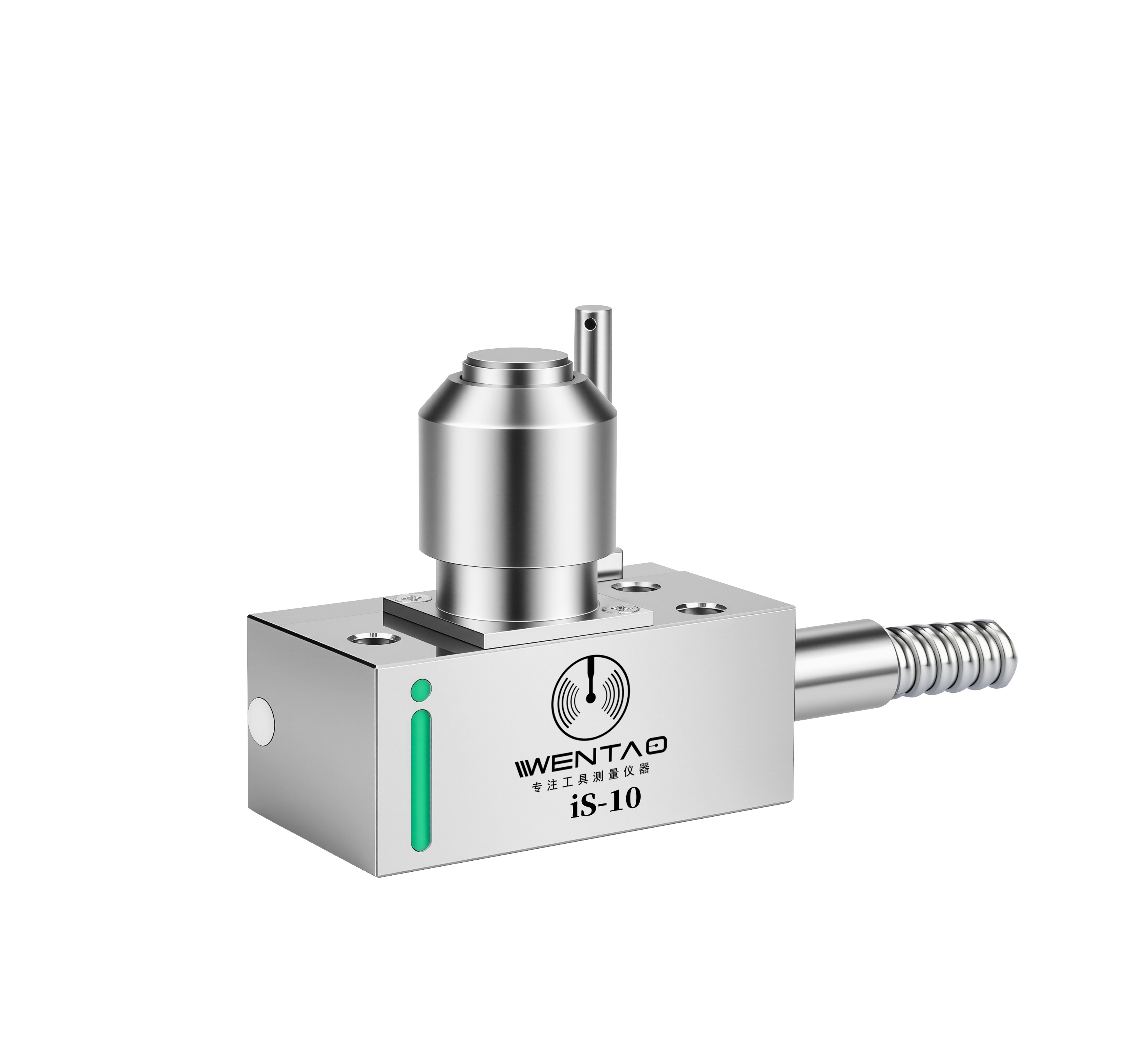

WENTAO iS-10 High-Precision Grating Tool Setter

The WENTAO iS-10 is a core auxiliary measurement device for CNC machines, designed to replace manual tool setting processes. By automatically measuring tool length parameters and transmitting the data directly to the CNC system, it drastically improves tool setting efficiency, eliminates human errors, and secures the precision of your machining workflow.

Key Features & Advantages

• Advanced Non-Contact Grating System: Features a patented dual-optical grating technology with a rapid response time of 20µs. It completely eradicates mechanical jitter and tool-setting signal bounces.

• Ultra-High & Long-Lasting Repeatability: Achieves an exceptional repetition accuracy of 0.5 µm (tested at a speed of 50mm/min), ensuring flawless tool compensation parameters.

• Extraordinary Longevity: By replacing physical switch points with optical sensors, it guarantees over 10 million trigger cycles with zero contact wear.

• Heavy-Duty Construction: Equipped with an ultra-hard alloy contact surface and a robust stainless steel housing to maintain peak accuracy over time.

• Industrial-Grade Shielding: Outfitted with a 5-Meter high-durability PUR cable protected by a 2.5-Meter minimum-bending-radius (R25) armored tube. It is fully resistant to grease, coolants, tearing, and harsh moving environments.

• Top-Tier IP68 Protection: Completely sealed against alkaline coolants, dense metallic debris, and stubborn oil stains typical in heavy CNC machining environment ecosystem.

• Integrated Safety & Diagnostics: Built-in smart over-travel safety alarm triggers and status LED indicator (Normally OFF, illuminates instantly upon active triggers).

Technical Specifications

• Model: iS-10

• Contact Surface Diameter: 10 mm

• Contact Surface Material: Ultra-Hard Alloy

• Trigger Direction: +Z Axis

• Output Configuration: NO (Normally Open)

• Stroke / Travel: 6 mm

• Repeatability: 0.5 µm (at 50mm/min)

• Service Life: > 10,000,000 times

• Protection Class: IP68 Industrial Standard

• Contact Force: 2.5 N (Vertically Installed State)

• Rated Voltage/Current: DC24V ±10%, Max 20mA (Operating Current: 10mA)

• Cable Specification: 5M PUR Shielded Cable

• LED Status Indicator: Active Trigger Light
