M25-2+1+5 8Pin Female Circular Waterproof EV Charging Connector
Product Overview

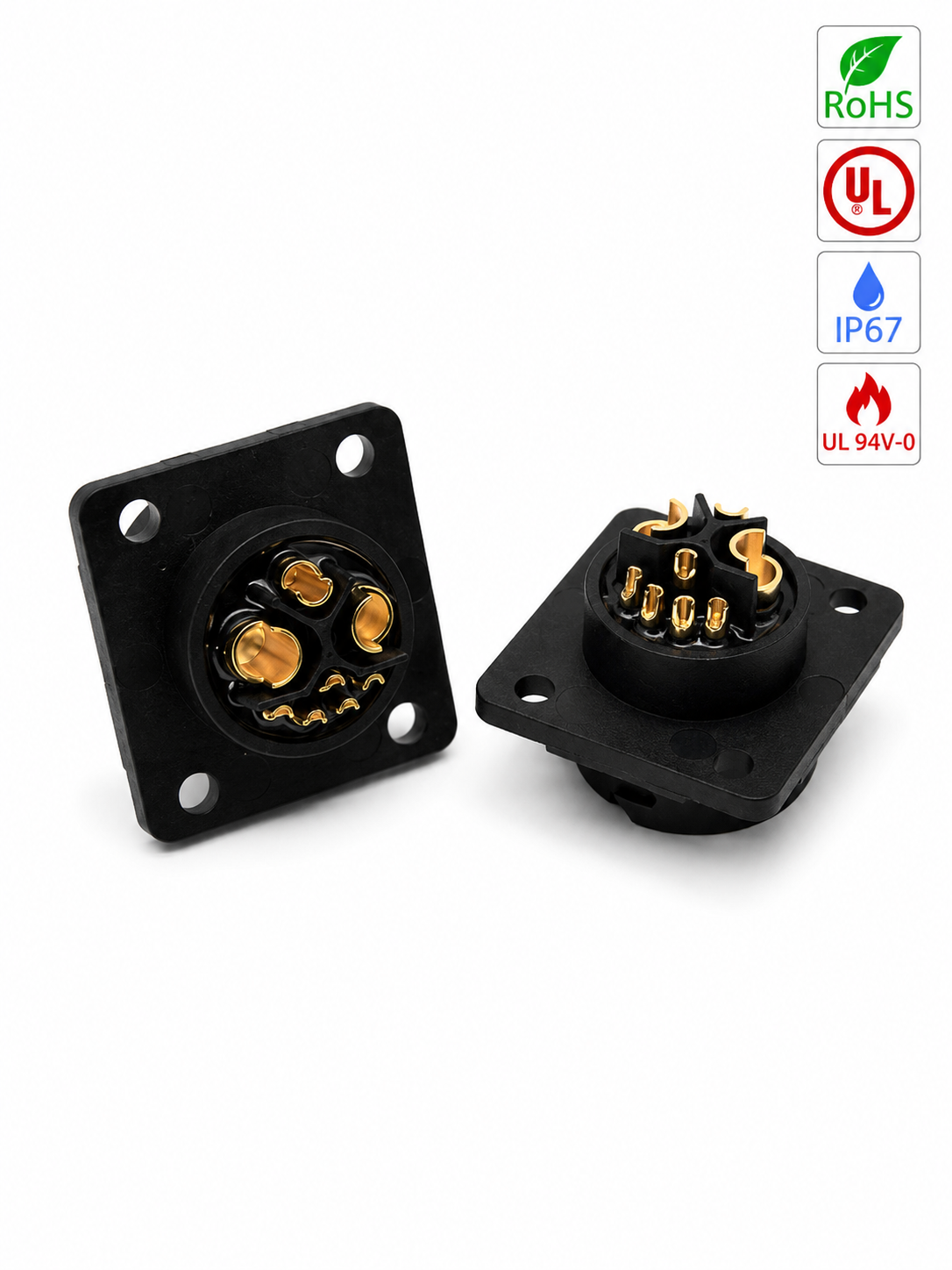

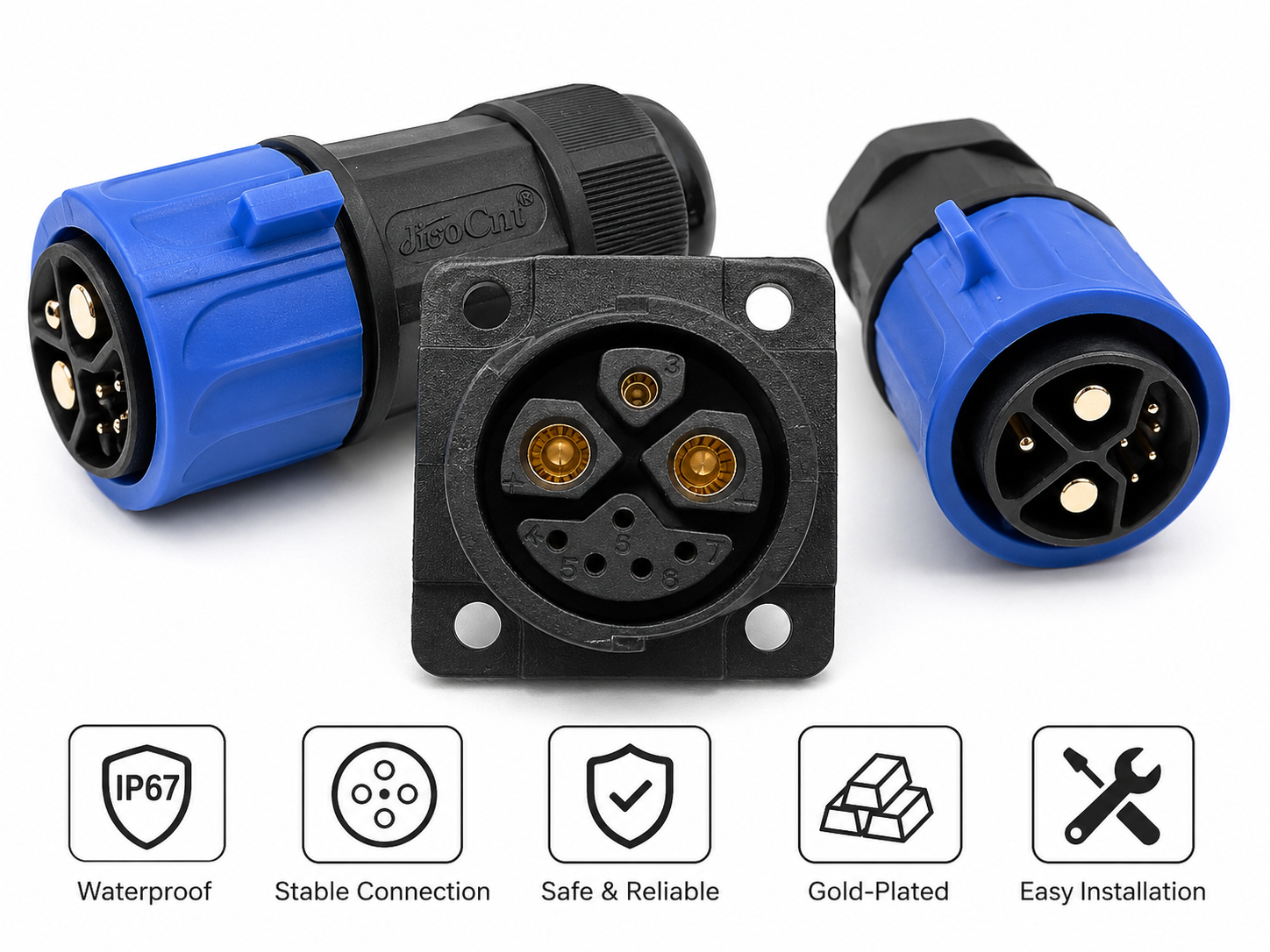

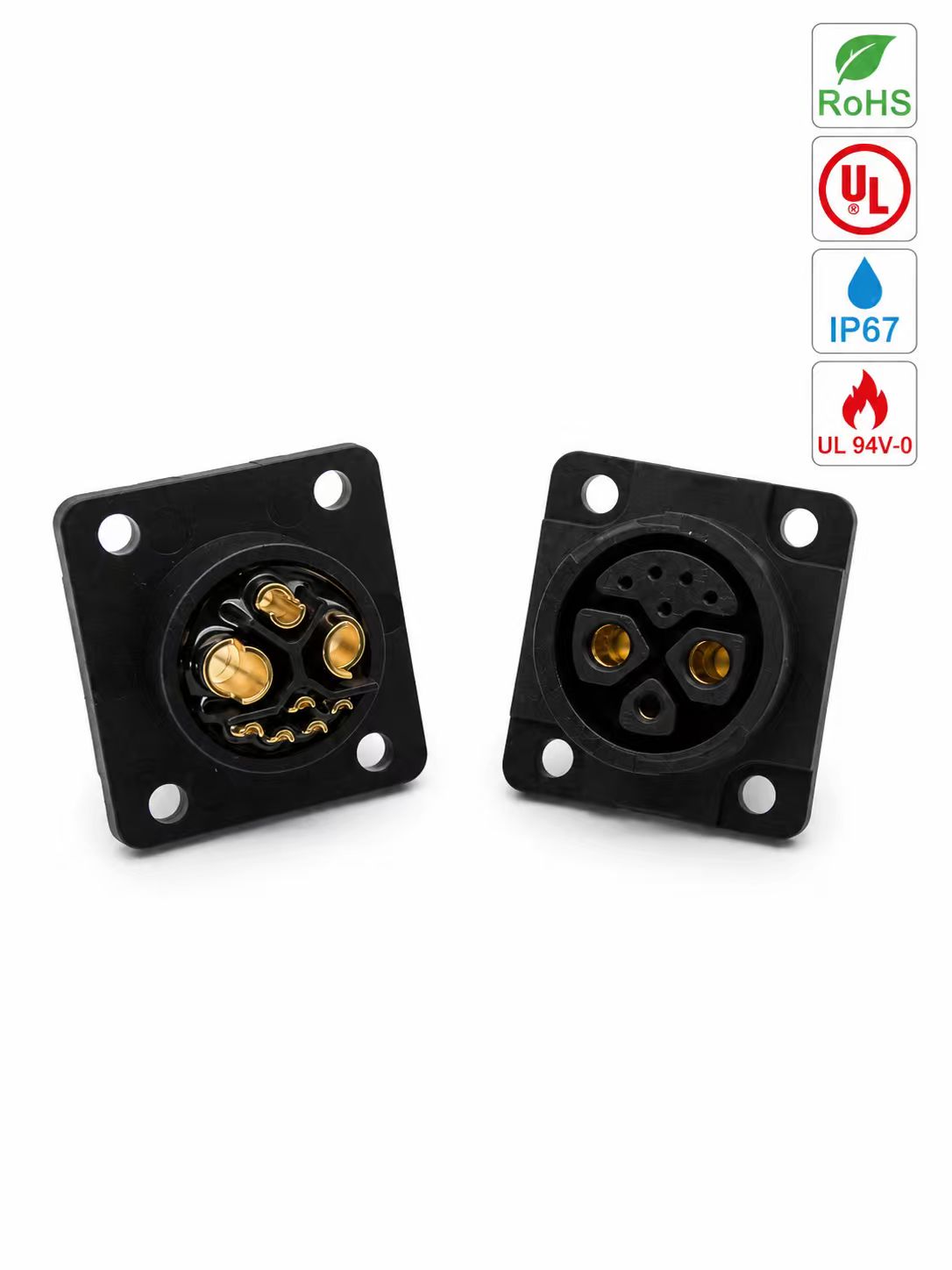

The Jbocnt M25-2+1+5 is a professional 8-pin circular waterproof power plug specially designed for electric motorcycle charging and lithium battery connection scenarios. This female connector adopts high-quality brass alloy contacts and reinforced PA66 nylon housing, supporting 30A/50A rated current and 500V rated voltage, integrating power and signal transmission in one compact structure.
With IP67 ingress protection and wide operating temperature range, it maintains stable and reliable electrical performance in outdoor, dusty and humid working conditions. Fully certified by ROHS, it is widely used in new energy two-wheelers, lithium battery packs and small energy storage devices. All products are manufactured in our Guangdong factory with strict quality control, supporting small-batch procurement with a minimum order quantity of 10 pieces.
| Product ID | 000047 |
| Category | General |
| Origin | China — Direct Import |
| Status | Available on Request |
